SIZES: 1/2” NB TO 24” NB.
Class: 150#, 300#, 400#, 600#, 900#, 1500# & 2500#.
Flanges Typs:
· Slip on
· Screwed
· Blind
· Socket Weld
· Reducing
· Weld Neck |
· Lap Joint
· Ring Type Joint
· Spectacle
· Orifice
· Etc. |
MATERIALS:
Carbon Steel, Stainless Steel, Low Temperature Carbon Steel, Alloy Steel, Steam Boiler Quality, Plus "Exotic" Materials I.E Various Grades Nickel, Monel, Incoloy, Hastelloy, Inconel, Cupronickel & Titanium
MATERIALS GRADES / STANDARD / SPECIFICATION:
Stainless Steel: ASTM A182 F304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904Letc.
Carbon Steel: ASTM A105/ A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2, etc.
Alloy Steel: ASTM A182 F1/ F5/ F9/ F11/ F22/ F91 etc.
Others: Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.
DIMENSIONS: ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44

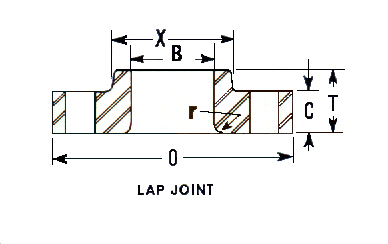

LAP JOINT FLANGE |
 |

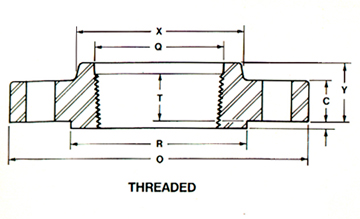

THREADED FLANGES |
 |

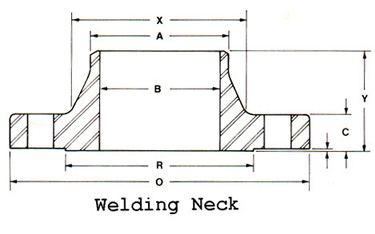

WELDING NECK |
 |

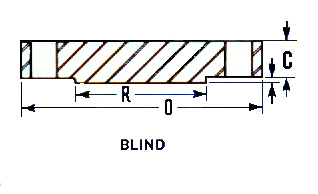

 BLIND FLANGES |
 |

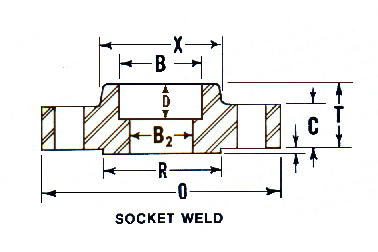

SOCKET WELD |
 |
